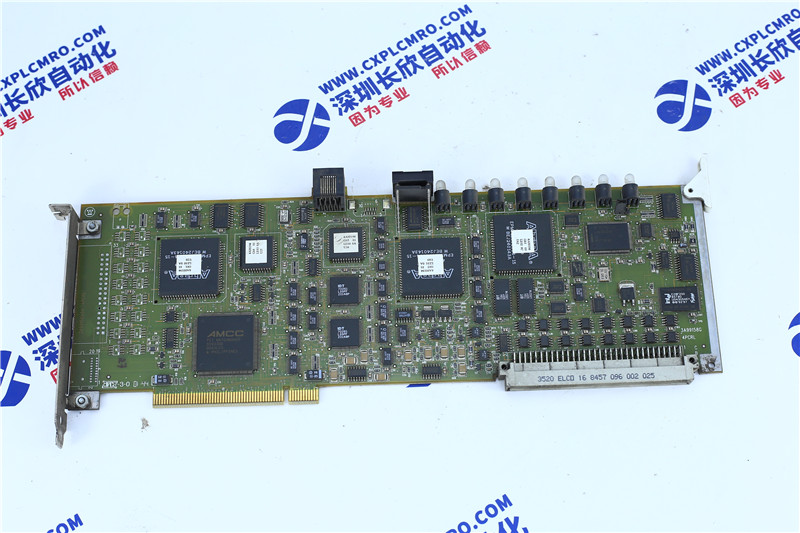

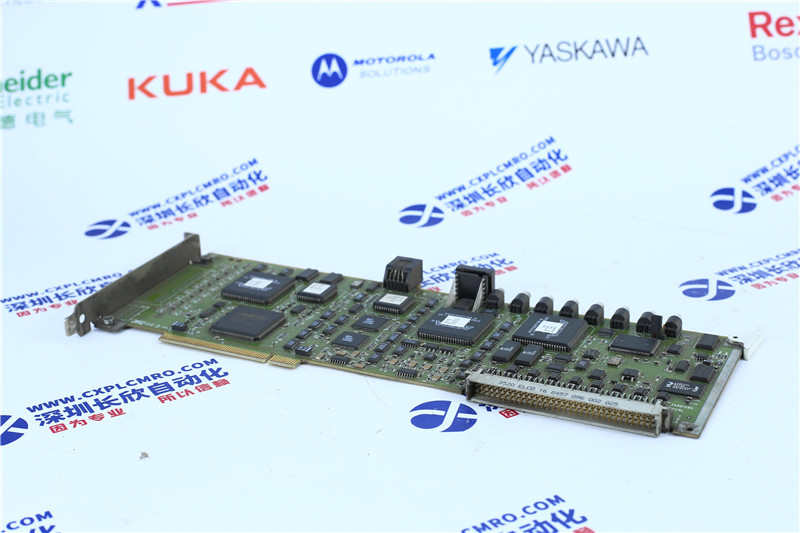

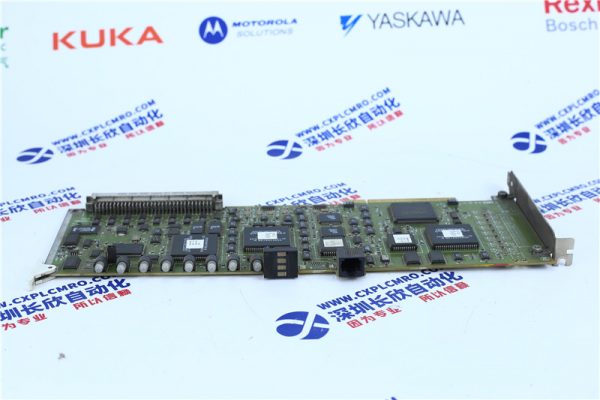

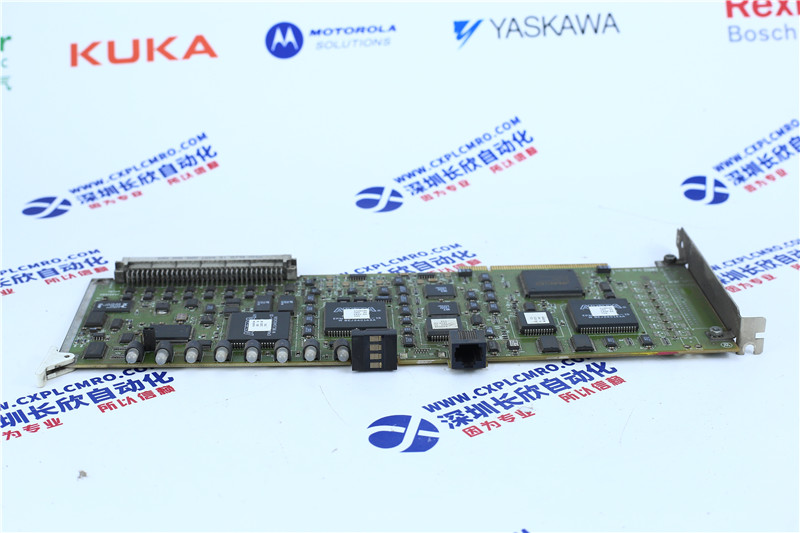

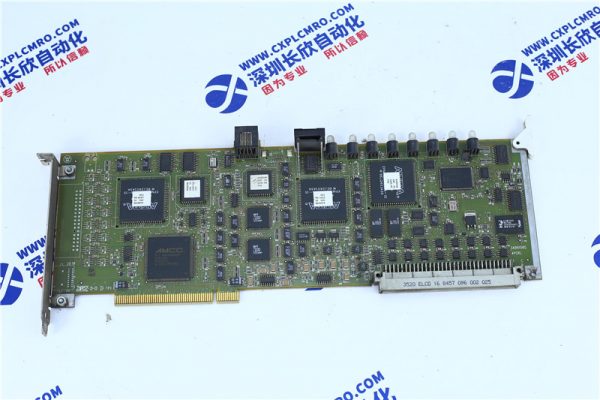

3A99158G01

分類：
選擇深圳長欣，選擇放心，售后無憂
大量現貨，當天順豐發貨！
了解產品更多詳細信息或購買請撥打以下電話咨詢：
白工微信
（加微信咨詢）

聯系人:白工

電話:18150087953 / 18005022138

Whatsapp/Wechat:+8618150087953 / +8618005022138

Email：sales@cxplcmro.com

描述

3A99158G01

從結構上分，PLC分為固定式和組合式（模塊式）兩種。固定式PLC包括CPU板、I/O板、顯示面板、內存塊、電源等，這些元素組合成一個不可拆卸的整體。模塊式PLC包括CPU模塊、I/O模塊、內存、電源模塊、底板或機架，這些模塊可以按照一定規則組合配置。

CPU是PLC的核心，起神經中樞的作用，每套PLC至少有一個CPU，它按PLC的系統程序賦予的功能接收并存貯用戶程序和數據，用掃描的方式采集由現場輸入裝置送來的狀態或數據，并存入規定的寄存器中，同時，診斷電源和PLC內部電路的工作狀態和編程過程中的語法錯誤等。進入運行后，從用戶程序存貯器中逐條讀取指令，經分析后再按指令規定的任務產生相應的控制信號，去指揮有關的控制電路。
CPU主要由運算器、控制器、寄存器及實現它們之間聯系的數據、控制及狀態總線構成，CPU單元還包括外圍芯片、總線接口及有關電路。內存主要用于存儲程序及數據，是PLC不可缺少的組成單元。
?在使用者看來，不必要詳細分析CPU的內部電路，但對各部分的工作機制還是應有足夠的理解。CPU的控制器控制CPU工作，由它讀取指令、解釋指令及執行指令。但工作節奏由震蕩信號控制。運算器用于進行數字或邏輯運算，在控制器指揮下工作。寄存器參與運算，并存儲運算的中間結果，它也是在控制器指揮下工作。

CPU速度和內存容量是PLC的重要參數，它們決定著PLC的工作速度，IO數量及軟件容量等，因此限制著控制規模。

?PLC與電氣回路的接口，是通過輸入輸出部分（I/O）完成的。I/O模塊集成了PLC的I/O電路，其輸入暫存器反映輸入信號狀態，輸出點反映輸出鎖存器狀態。輸入模塊將電信號變換成數字信號進入PLC系統，輸出模塊相反。I/O分為開關量輸入（DI），開關量輸出（DO），模擬量輸入（AI），模擬量輸出（AO）等模塊。
? ? 開關量是指只有開和關（或1和0）兩種狀態的信號，模擬量是指連續變化的量。常用的I/O分類如下：
? ? 開關量：按電壓水平分，有220VAC、110VAC、24VDC，按隔離方式分，有繼電器隔離和晶體管隔離。
? ? 模擬量：按信號類型分，有電流型（4-20mA,0-20mA）、電壓型（0-10V,0-5V,-10-10V）等，按精度分，有12bit,14bit,16bit等。
? ? 除了上述通用IO外，還有特殊IO模塊，如熱電阻、熱電偶、脈沖等模塊。
? ? 按I/O點數確定模塊規格及數量，I/O模塊可多可少，但其最大數受CPU所能管理的基本配置的能力，即受最大的底板或機架槽數限制。

產品承諾：
保?證?全新原裝進口,
保?證?安全準時發貨，
保?證售后服務質量，
優勢價格，大量現貨。

主營DCS系統配件
機器人系統配件
大型伺服系統配件
品牌：ABB???,AB??,GE,FOXBORO,本特利，英維思，伍德沃德，西屋，瑞恩，施耐德，西門子，摩托羅拉，安川。力士樂。ACSO，橫河等進口品牌。 專業銷售進口DCS? PLC系統備件模塊
Triconex?Siemens?Yaskawa?ABB?GE?Ovation?AB?Foxboro?Motorola?Schneider?XYCOM?KUKA ? 專業銷售進口DCS? PLC系統備件模塊 15天包退換 一年質保 大量現貨? 國內實力庫存商家
