描述

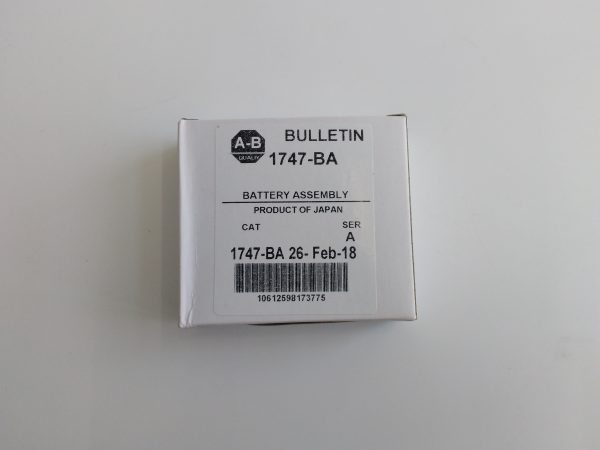

1747-BA

DCS在發展的過程中也是各廠家自成體系，但大部分的DCS系統，比如西門子、ABB、霍尼維爾、GE、施耐德等等，雖說系統內部（過程級）的通訊協議不盡相同，但操作級的網絡平臺不約而同的選擇了以太網絡，采用標準或變形的TCP/IP協議。這樣就提供了很方便的可擴展能力。在這種網絡中，控制器、計算機均作為一個節點存在，只要網絡到達的地方，就可以隨意增減節點數量和布置節點位置。另外，基于windows系統的OPC、DDE等開放協議，各系統也可很方便的通訊，以實現資源共享。

從數據庫來說。
DCS一般都提供統一的數據庫。換句話說，在DCS系統中一旦一個數據存在于數據庫中，就可在任何情況下引用，比如在組態軟件中，在監控軟件中，在趨勢圖中，在報表中……而PLC系統的數據庫通常都不是統一的，組態軟件和監控軟件甚至歸檔軟件都有自己的數據庫。為什么常說西門子的S7 400要到了414以上才稱為DCS？因為西門子的PCS7系統才使用統一的數據庫，而PCS7要求控制器起碼到S7 414-3以上的型號。
